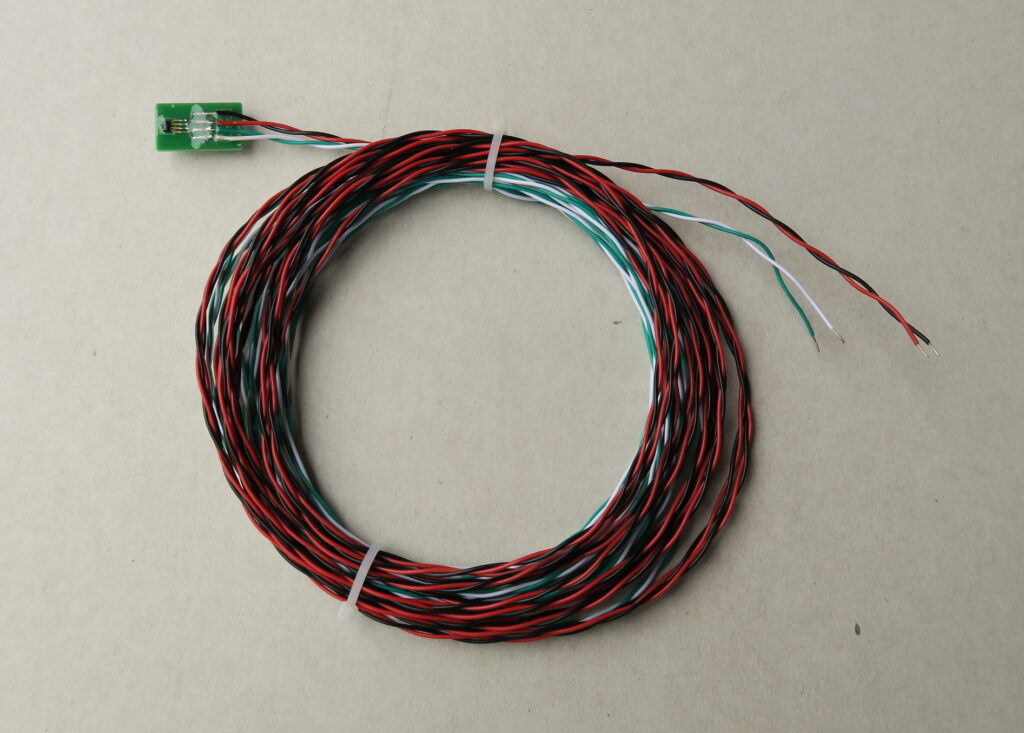

The air gap flux probe is mounted on a stator tooth to measure the magnetic flux density in the air gap. During manufacture, cables and Hall sensor are secured using epoxy adhesive, after which three layers of PCB conformal coating are applied. Other protective solutions are available upon request.

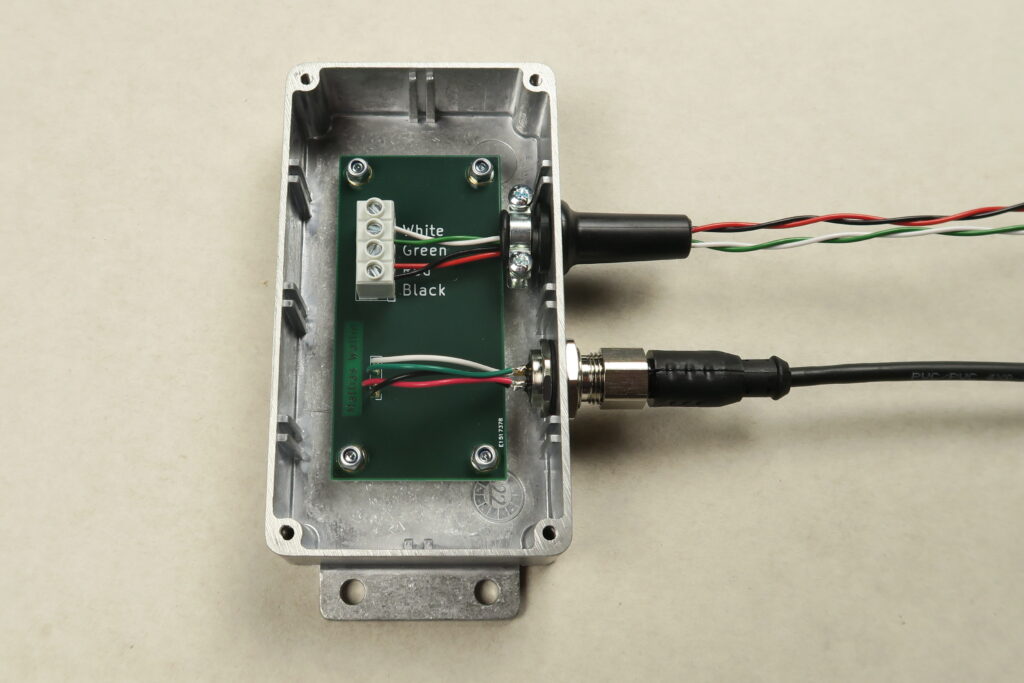

Junction box
€
177
A junction box is used to terminate the sensor cables. The junction box is connected to the KROM flux meter through a standard M12 signal cable. It is also possible to connect the Hall sensor directly to the screw terminals on the KROM flux meter.

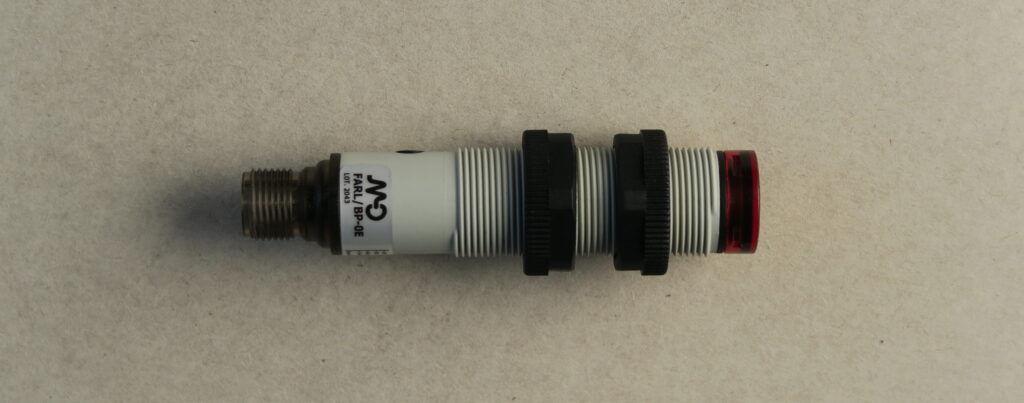

Optical sensor
€
78

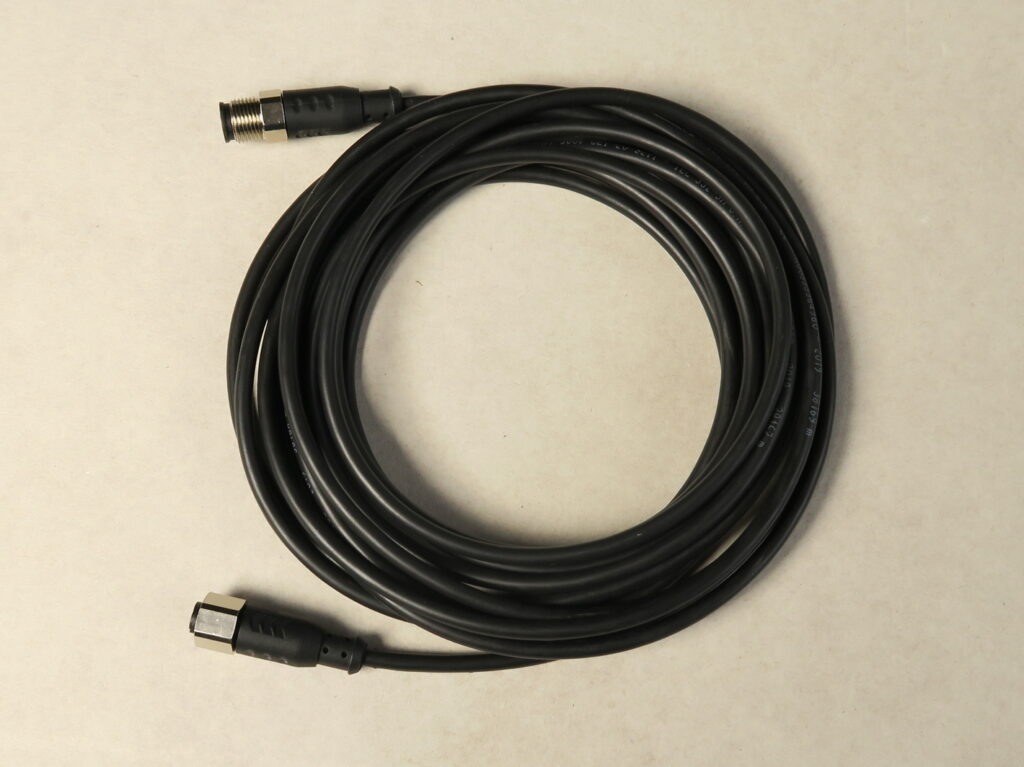

Cable for optical sensor and junction box
€
28
Power supply for KROM measurement system.
Please state the type of mains contact you desire.
